Deck Equipment

Winches

  • Two Lewmar 40s, 2-speed, non-self-tailing, mounted on coaming came OEM.
    In fall 2011, replaced with two self-tailing two-speed Andersen 45s.
  • Two Lewmar 8s, 1-speed, non-self-tailing, mounted on mast

Traveler

  • Track: "X" style, Nicro Fico NF-610
    • Top width 1 7/16"
    • Height 1 5/16"
    • Bottom Width 1 3/4"
    • Length 59 3/4" (measured along track)
    • Track bent into an arc with ~ 3 1/4" rise at center
  • Car: NF-588 4-wheel, with attached control blocks
  • Control blocks: NF-836, up to 7/16" line, 1 1/8" delrin sheeve (NF 73), integral becket
  • End Stops: NF-611N neoprene, secured with 2" x 5/16" SS pin (NF 611P) pres fit into hole drilled 3/4" from track end
  • Rig-Rite purchased a lot of Pearson's inventory and still has some parts available.

Ground Tackle

  • ?? lb Claw on bow roller, with 50(?) ft of 7/16" chain, SS swivel, and 200 ft of 3/4" line
  • ?? lb Danforth on bow pulpit bracket, with ?? ft of 5/16" chain and 100 ft of 5/8" line,
  • SS Chain snubber
  • ?? lb plow, not aboard

Hatches

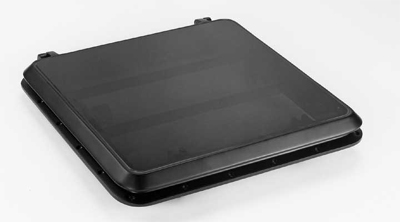

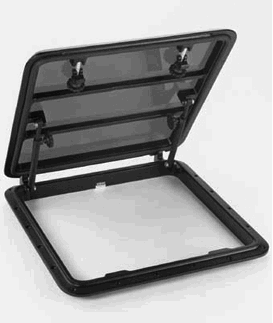

  • Two hatches: Main Cabin and V-Berth
  • Bomar 100-Series, Original Equipment
  • Cast Aluminum Almag-35
  • Standard black finish (worn out)
  • Tinted Lexan
  • Support Bars Under Lexan
  • Can only be opened from inside
  • Parts & New Hatches Still Available (2012):
  • Completely Rebuilt and Rebedded in 2012

Hatch Data
 Main CabinV-Berth
Part No. C170--STD-B C139MED-STD-B
Cutout Dimensions 16 1/2 x 16 1/2" 19 7/16" x 19 7/16"
Cutout Corner Radius 1 1/16" 3/4"
Deck Flange Outside Dimensions 19" x 19" 22 3/8" x 22 3/8"
Lid Outside Dimensions 18 1/2" x 18 1/2" 22" x 22"
Lexan Dimensions 16 3/4" x 16 3/4" 19 5/8" x 19 5/8"
Lexan Corner Radius ??? ???
Number of Support Bars 1 2
Number of Tie-Down Dogs 2 2
Number of Riser Arms 1 1
Spigot Length 1" N/A
Trim Ring Available Yes No

Repair Parts
DescriptionPart No.
Riser Arm Assembly P100-00
Riser Arm Male Knob (5/16") P100-06
Tie-down Dog Assembly P100-09
Tie-down Dog Female Knob (5/16") P100-08
9/16" Gasket, by the foot P100-52


Ports

  • Four, Fixed, Aluminum Frames, Main Cabin
    • Two Trapezoidal
    • Two Rectangular
    • Use same glazing and moulding gaskets as Catalina
    • Were resealed by a Previous Owner
    • Parts available from Catalina Direct
  • Three, Small, Fixed, Black Plastic Frames
    • Two in V-Berth
    • One above hanging locker
    • Trim Outside Dimensions 16 5/8" x 6 3/4"
    • Window dimensions 13 3/4" x 3 3/4"
    • May be Beckson "Newport" fixed ports
  • One Small, Opening, With screen (broken), in Head/Shower, Black Plastic Frame
    • Trim Outside Dimensions 16 5/8" x 6 1/2" ??
    • Opening Dimensions 17 7/8" x 3 7/8"
    • Probably made by Beckson or Gray (now Bomar/Gray)
    • Bomar/Gray PN G414-SD18 ??
    • Beckson "Newport" PN 414

Steering & Pedestal

  • Edson

Compass

  • 5" Richie
  • Model: SP-5 Globemaster
  • Ser: D76

Deckplates

  • Fuel Fill
    • 2 1/8" dia chromed brass cap
    • 1/4" holes spaced 1 1/8"
    • Trim ring label "Gas"
  • Rudder Post Access
    • Aluminum 6 7/8" dia. cap
    • 1/4" holes spaced 3"
    • Unlabeled
  • Port Tank Freshwater Fill
    • 2" dia black plastic cap
    • 1/4" holes spaced 1 1/16"
    • Trim ring label "Water"
  • Bow Tank Freshwater Fill
    • 2" dia chromed brass cap
    • 7/32" holes spaced 1 3/16", with slot
    • Trim ring label "Water"
  • Starboard Tank Freshwater Fill
    • 2" dia chromed brass cap
    • 7/32" holes spaced 1 3/16", with slot
    • Trim ring label "Water"
  • Holding Tank Pumpout
    • Black plastic cap
    • Trim ring label "Waste"
  • Bow Ventilator
    • 4" dia opening, white plastic
    • Currently capped, no vent scoop present
